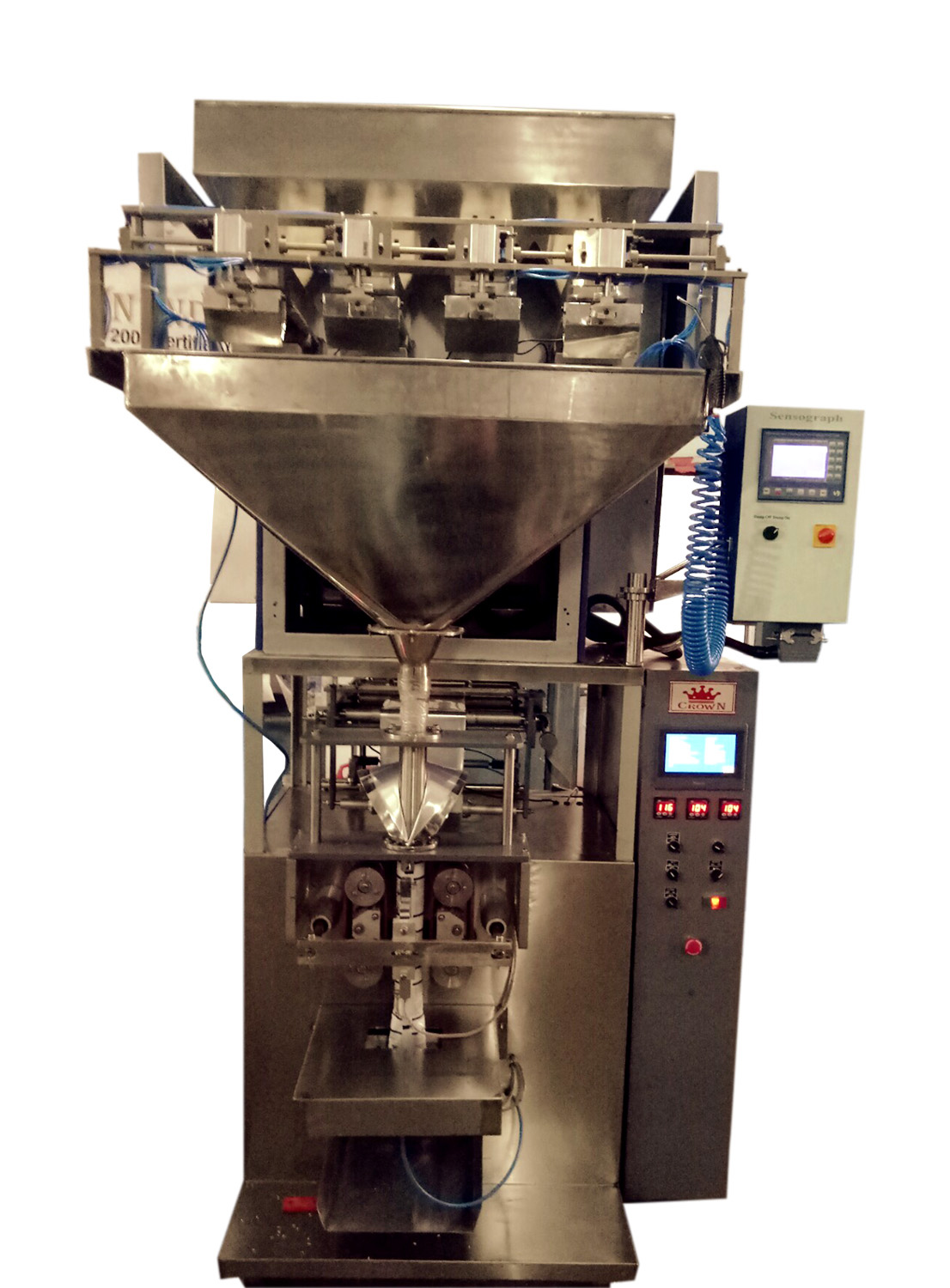

UNEVEN >> 4 HEAD WEIGHER(MODEL : CR-W-4H)

4 HEAD WEIGHER(MODEL : CR-W-4H)
  • Description/ Quotation
  • Product Info
  • Price
  • Estimated Dispatch Time
  • Product Video

1. MODEL: CR-W-4H: Product: Free flow products like Pulses, Seeds, Granules, chips, Namkeens, chocolates Weighing Range: 10 gms to 100 gms Speed: 20-30 Drops/Minute 2. Vertical Form Fill & Seal machine

Feeding head : Electronic Load Cell Weigher
Packing Range : 20 to 30 Pouches
Production Speed : 20 to 30 Pouches (Depending upon the product & Filling System and quantity to be packed)
Machine control system : P.L.C (Programmed Logic Controller)
Film Width : up to 500mm
Film Thickness : 60 to 80 microns
Film Material : Laminated
Sealer heating system : continues
Filling Accuracy : +/- 0.5-1%
Inner Core Dia. of Film Roll : 70mm
Outer Dia. of the film Roll : up to 400mm
Pouch Style : Center sealed Pillow type
Pouch Width : up to 230mm
Pouch Length : up to 350mm
Compressed Air pressure : 5-7 CFM @ 4-6 pressure bar
Air consumption : 40 m3 / Hour
Power Consumption : 5KW/Hour
Peak Power : 5 kW
Power requirement : 415 VAC Three phase, 50 Hz, 2.5 KW
Film Guard mechanism : Auto stop when film is exhausted
Pouch Counter : Provided
Date printing Device : Optional
Photo Cell : Inclusive
Machine Dimensions in ‘mm’ : 2200(H) x 920(W) x 1400(Depth)
Net Weight : 850 kgs

  • Approx : 9,00,000.00 INR



Delivery Time : 6 to 8 weeks from the date of advance received
